Highlights

• Ultralight SmartForm C1 Premium Alloy Frame w/ full carbon fork
• Shimano 105 Di2 electronic shifting & hydraulic disc brakes
• HollowGram 27 SL carbon Seatpost / DT Swiss R470 wheels

DETAILS

• Platform

  CAAD13
• Model Name

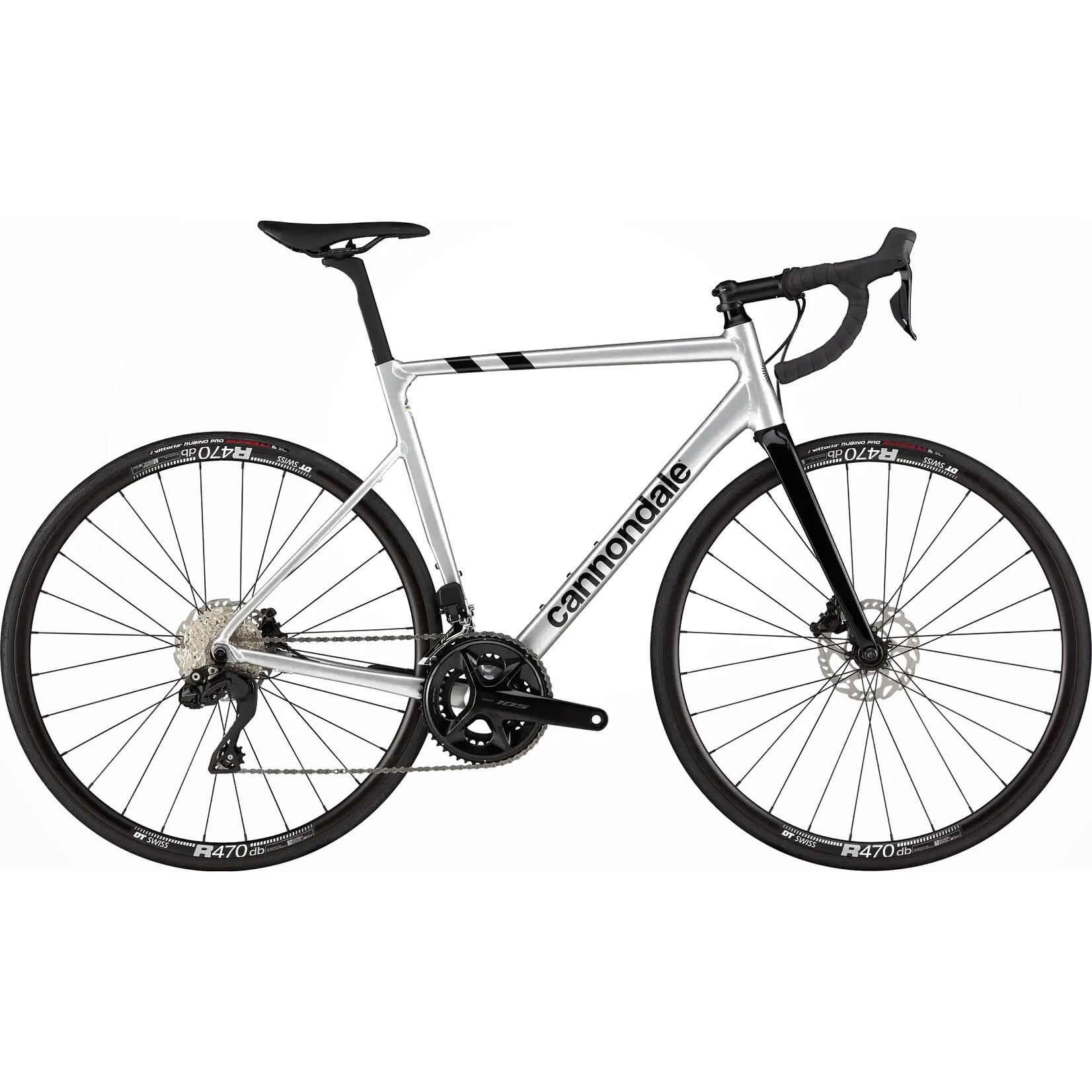

  CAAD13 105 Di2
• Model Code

  C13452U

FRAMESET

• Frame

  SmartForm C1 Premium Alloy, 12x142 Speed Release thru-axle, flat-mount disc, integrated cable routing w/ Switchplate, SAVE, BB30a, Di2 ready
• Fork

  CAAD13 Full Carbon, SAVE, 1-1/8" to 1-1/4" steerer, integrated crown race, 12x100mm Speed Release thru-axle, flat mount disc, internal routing, 55mm offset (44-54cm) 45mm offset (56-62cm)
• Headset

  CAAD13, integrated, 1-1/8" - 1-1/4

DRIVETRAIN

• Rear Derailleur

  Shimano 105 Di2 7150
• Front Derailleur

  Shimano 105 Di2 7150, braze-on
• Shifters

  Shimano 105 7170 hydraulic disc, 160/160mm RT70 rotors
• Chain

  Shimano 105 7100, 12-speed
• Crank

  Shimano 105 7100, BSA, 50/34
• Rear Cogs

  Shimano 105 7100, 12-speed, 11-34
• Bottom Bracket

  FSA PF30a BB for 24mm

BRAKES

• Brakes

  Shimano 105 7170 hydraulic disc, 160/160mm RT70 rotors
• Brake Levers
  Shimano 105 Di2 7170 hydraulic disc

WHEELS

• Rims

  DT Swiss R470 db, 28h
• Spokes

  Stainless Steel, 14g
• Tire Size

  25
• Wheel Size

  700
• Hubs

  (F) Formula CL-712, 12x100mm centerlock / (R) Formula RXC-400, 12x142mm centerlock
• Tires

  Vittoria Rubino Pro Bright Black, 700x25c, reflective strip

COMPONENTS

• Handlebar

  Cannondale 3, 6061 Alloy, Compact
• Stem

  Cannondale 3, 6061 Alloy, 31.8, 7°
• Grips

  Cannondale Bar Tape, 3.5mm
• Saddle

  Prologo Nago RS STN
• Seatpost

  HollowGram 27 SL, Carbon, 2 bolt clamp, 330mm, 0mm offset (44, 48 cm), 15mm offset (51-62cm)
