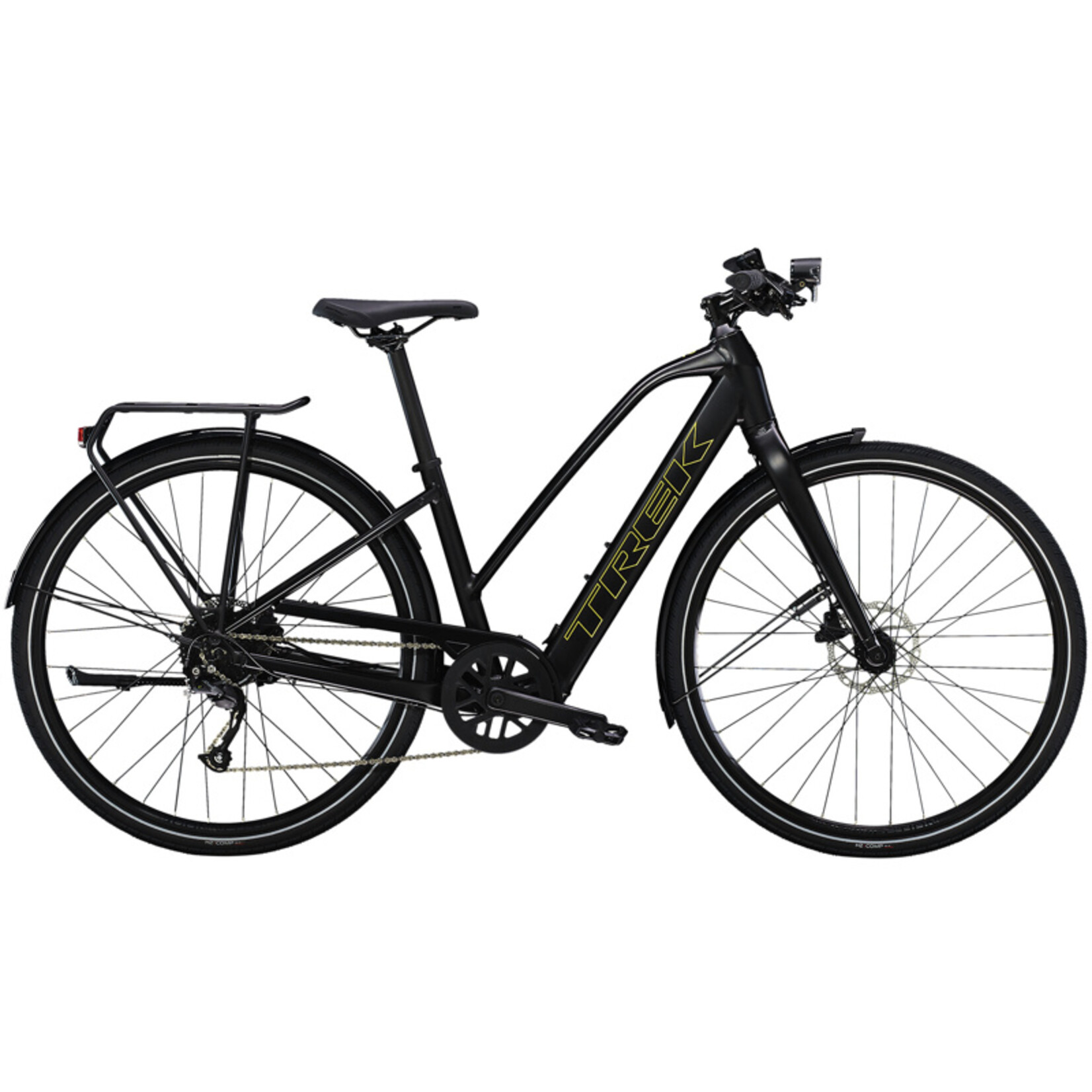

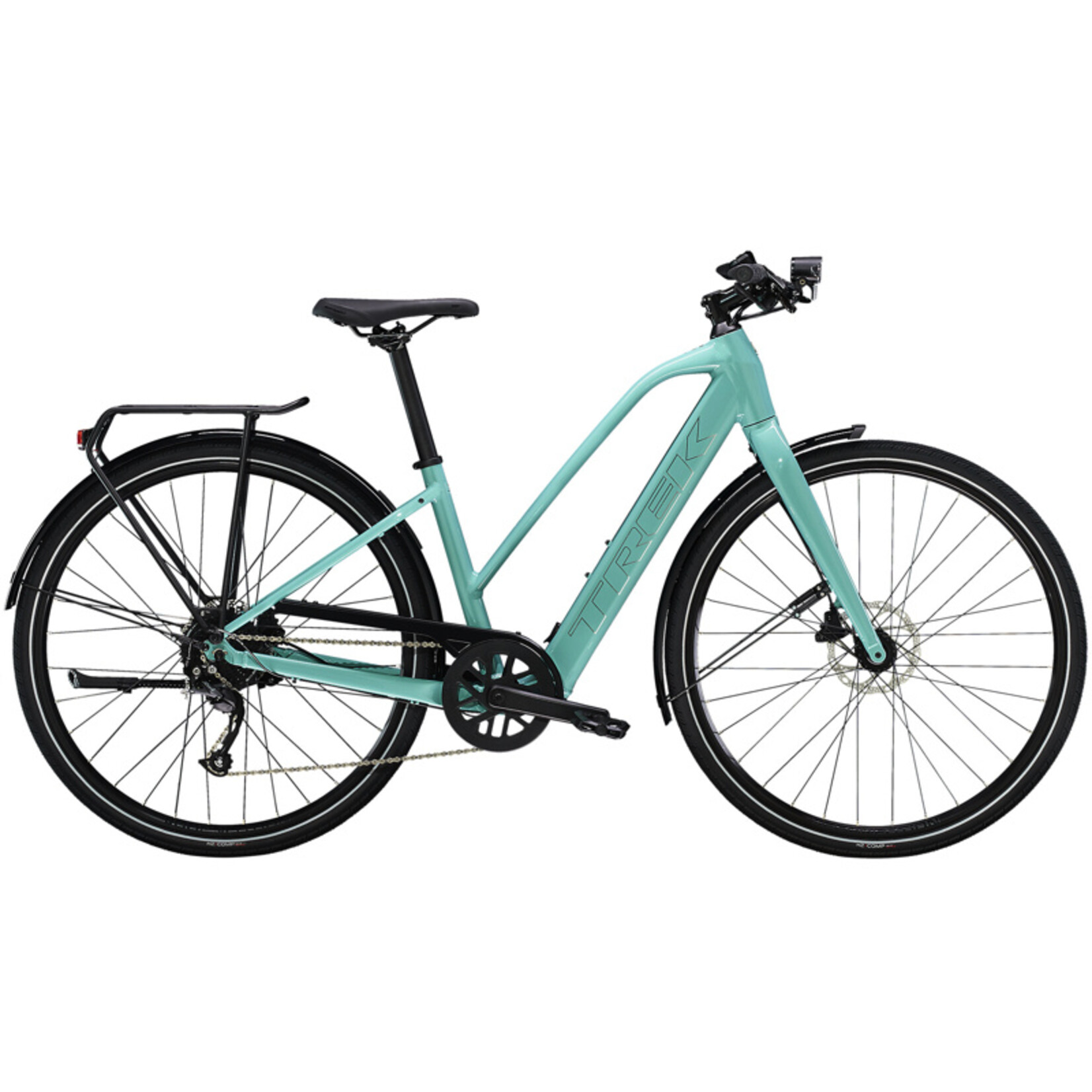

FX+ 2 Stagger is a lightweight city electric bike that’s designed to make everyday excursions faster and more fun. It has an intuitive and natural feeling pedal assist system that makes exploring your city extra exciting and cruising up hills a breeze. Useful accessories like a rack and fenders add even more versatility to this bike.
|
Frame |
Alpha Gold Aluminum, internal cable routing, internal battery, rack & fender mounts, post mount disc, kickstand mount, 144.5mm OLD hub motor spacing |
|---|---|
|
Fork |
FX+ alloy, internal brake routing, fender mounts, rack mounts, ThruSkew 5mm bolt-on skewer |
|
Hub front |
Formula DC-20, alloy, 6-bolt, 5x100mm QR |
|---|---|
|
Hub rear |
HyDrive hub drive motor, 40Nm, 250W |
|
Rim |
Bontrager Connection, alloy, double-wall, 32-hole, schrader valve |
|
Tire |
Bontrager H2 Comp, reflective strip, wire bead, 30tpi, 700x40c |
|
Max tire size |
50c without fenders, 45c with fenders |
|
Shifter |
Shimano Altus M2010, 9 speed |
|---|---|
|
Rear derailleur |
Shimano Altus M2000, long cage |
|
Crank |
ProWheel Pro alloy, 42T narrow-wide steel ring |
|
Bottom bracket |
Torque sensor, threaded, 122.5mm spindle |
|
Cassette |
Shimano HG200, 11-36, 9 speed |
|
Chain |
KMC X9 |
|
Pedal |
Bontrager City pedals |
|
Saddle |
Bontrager Sport Women's |
|---|---|
|
Seatpost |
Bontrager alloy, 31.6mm, 12mm offset, 400mm length |
|
Handlebar |
Bontrager alloy, 31.8mm, 15mm rise, 690mm width |
|
Grips |
Bontrager XR Endurance Comp, lock-on |
|
Stem |
Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 90mm length |
|
Brake |
Shimano hydraulic disc, MT200 lever, UR300 caliper |
|
Brake rotor |
Shimano RT26, 6-bolt,160mm |
|
Rotor size |
Max brake rotor size: 160mm |
|
Battery |
250Wh |
|---|---|
|
Charger |
2A, 42V output, 100V-240V AC input |
|
Light |
Herrmans MR4, 120 lumen, 40 lux, LED, headlight / Spanninga Solo, taillight |
|
Computer |
Bluetooth display |
|
Kickstand |
Alloy, rear mount |
|
Cargo rack |
MIK-compatible alloy rear rack |
|
Fender |
SKS plastic |
|
Weight |
M - 18.20 kg / 40.13 lbs |
|---|---|
|
|
|
|
|
PARTS SPEC & PRICE ARE SUBJECT TO CHANGE. PHOTO MAY NOT SHOW EXACT SPEC |
