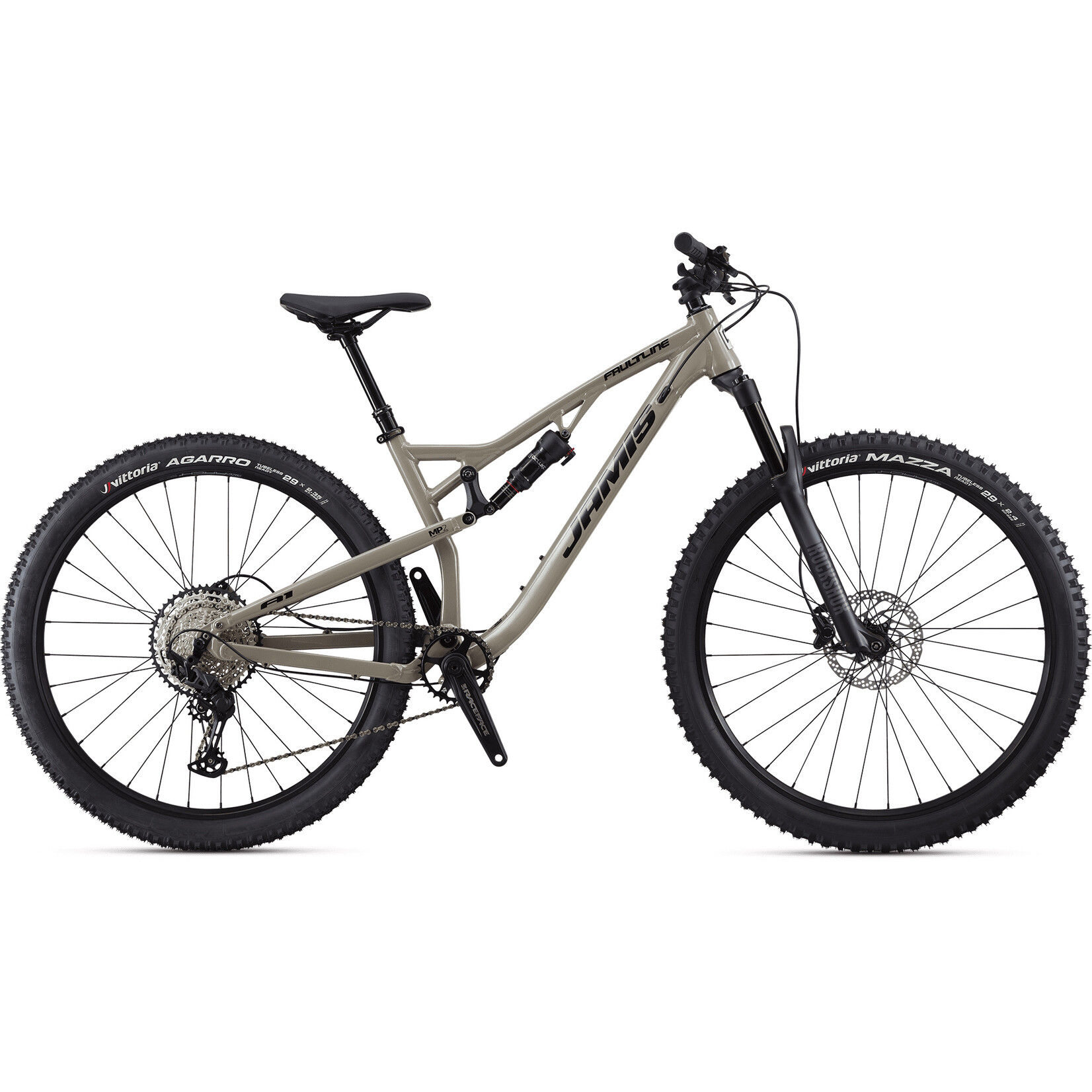

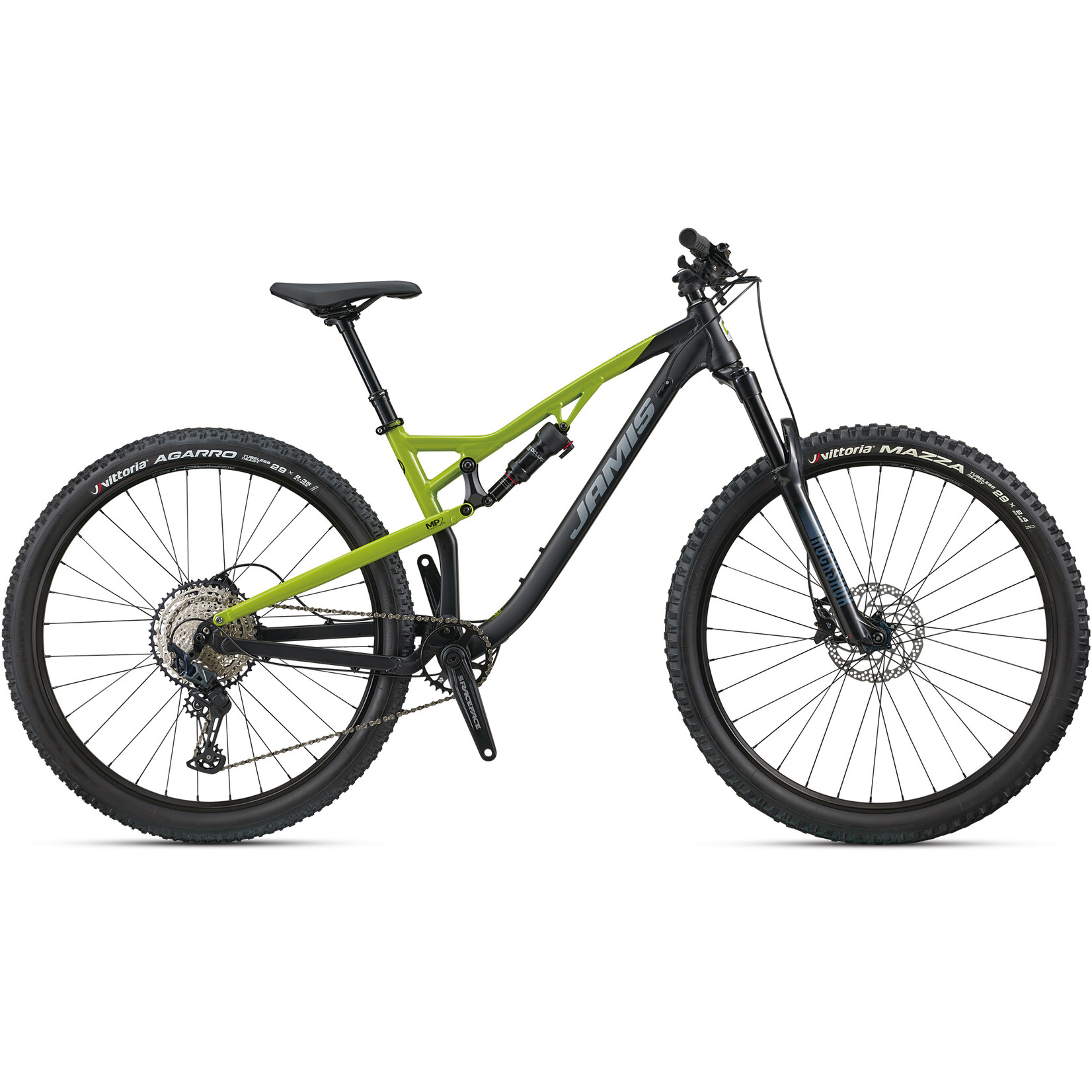

Dual suspension platforms open up a whole new world of on-trail speed and control. Faultline combines our proven MP2 design, the suspension platform that’s won us numerous industry accolades and Bike of the Year awards, with 29″ wheels and a smart spec.
It’s the perfect rig for the experienced hardtail rider looking to upgrade to a dual suspension bike, or for a new rider looking for a bit of a head start.
| FAULTLINE | A1 |
|---|---|
| Frame | Triple-butted 6061 alloy, 120mm travel mp2 suspension, 1.5 – 1 1/8” tapered head tube, asymmetrical chainstays w/12x148mm thru-axle dropout, internal dropper post routing, ISCG05 chainguide mount, Rock Shox Deluxe Select+ RL air shock with rebound adjust & lock out, replaceable derailleur hanger |
| Fork | Rock Shox 35 Gold RL 29”, Solo Air compression, lever actuated lockout, external rebound, 35mm aluminum stanchions, magnesium lowers, 15x110mm axle, 130mm travel, 51mm rake |
| Headset | FSA Orbit 1.5 Zero-Stack internal cup, 8mm cone spacer |
| Wheels | Stan’s No Tubes Arch D 29” tubeless rims, 32H, Shimano SLX 15x110mm front & 12x148mm rear hubs, stainless spokes |
| Tires | WTB Vigilante 29 x 2.35” Front & Trail Boss 29 x 2.25” Rear, TCS Tubeless |
| Derailleurs | Shimano SLX, 12-speed |
| Shift levers | Shimano SLX, 1×12-speed |
| Chain | KMC X12, 12-speed |
| Cassette | Shimano M7100, 12-speed, 10-51T |
| Crankset | Race Face Ride, 32T |
| BB Set | Race Face BSA |
| Pedals | N/A |
| Brakeset | Shimano MT401 hydraulic disc, 180mm front & 160mm rear RT30 rotors |
| Handlebar | Race Face Ride, 35 x 760mm |
| Stem | Race Face Ride, 50mm |
| Grips | Jamis Lock-On |
| Seat Post | KS Rage Dropper, Southpaw remote |
| Saddle | WTB Volt |
| Sizes | S (15.5), M (17), L (19), XL (21) |
| Color | Black Venom, Sandstone |
| Weight | 33 lbs |
