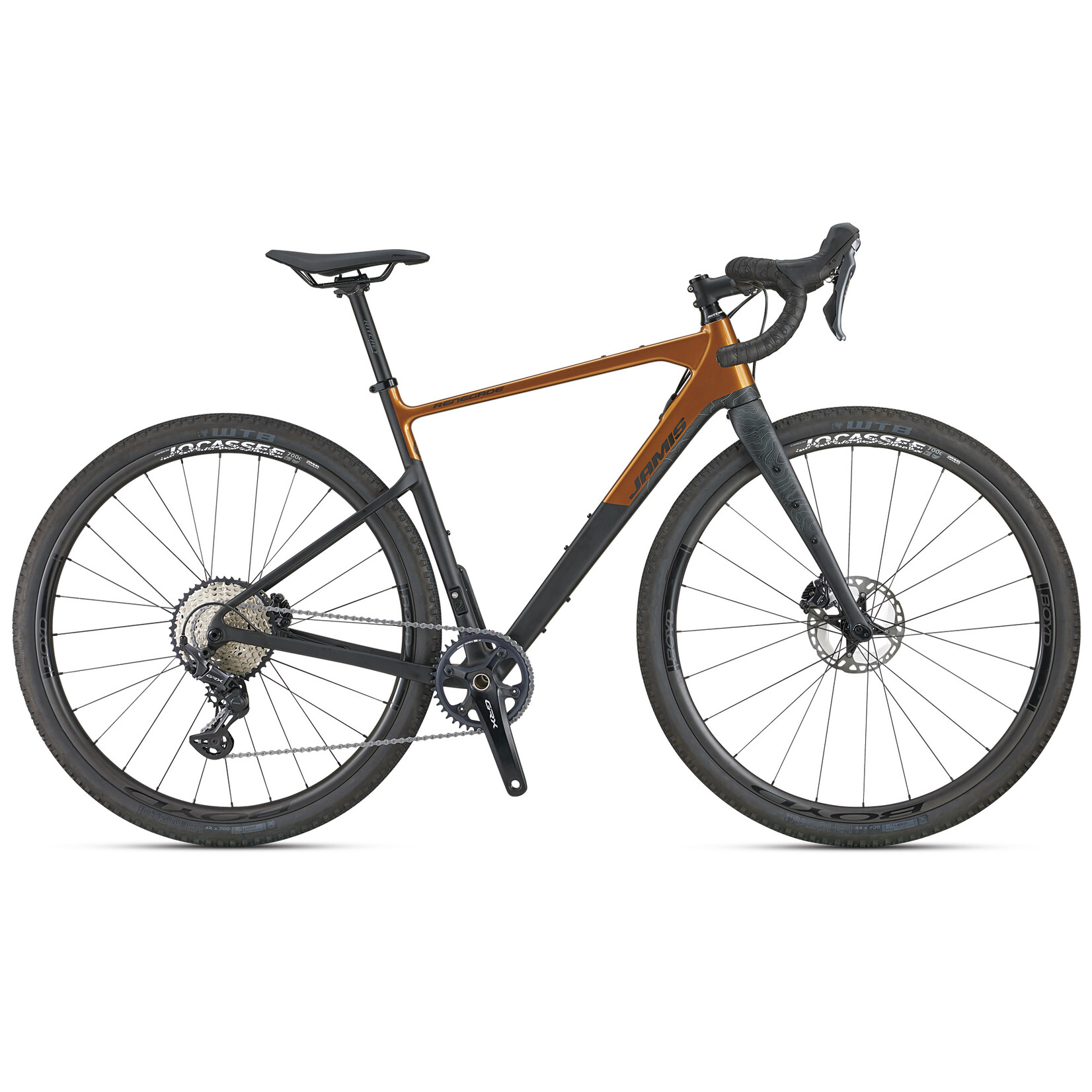

Since its inception in 2014 the Jamis Renegade has been defining versatility in modern adventure bikes. It’s not easy improving on something that’s capable of, well, just about everything, but our NEW Renegade platform is simply exceptional. We’ve succeeded in preserving the all-important DNA of our original Renegade while also adding more tire clearance, adjustability, and compliance.
Read on to understand Jamis’ approach to adventure frame design and how it keeps the Renegade’s superior ride quality consistent regardless of tire choice and frame size, on-road or off.
| RENEGADE | C3 |
|---|---|
| Frame | Renegade Omniad M30 monocoque carbon fiber frame, Near Net molding process, 12×142 thru-axle, SST tubing diameters, 1.5 – 1 1/8” head tube, EVO386 carbon BB shell, internal cable routing compatible for both Di2 wires or traditional cables and internal dropper post, flat mount disc brakes and exposed fender mount eyelets, carbon drop outs, FD mount and replaceable threaded UDH hanger and TA mount, clearance for 45-50c tires |
| Fork | Renegade monocoque carbon fiber fork, flip-chip with 50/55mm offset, 12mm thru-axle, carbon dropouts, tapered steerer with 1.5” hollow formed crown, flat mount disc brakes with internal cable routing, exposed fender mounts and water bottle eyelets |
| Headset | Ritchey Comp Drop-In, sealed bearing with nylon upper compression ring, 1.5 – 1 1/8” |
| Wheels | Boyd Jocassee Carbon Tubeless wheelset, i26, 24/28H, Boyd Quest centerlock ABEC 3 cartridge sealed bearing hubs, Pillar Aero 20 wing bladed spokes, Microspline Driver, Wingnut tubeless valves, front 12mm/rear 12×142 thru-axles with Switch Lever. Max tire Pressure 65psi/4.4bar |
| Tires | WTB Raddler Tubeless, 700 x 44c, Dual DNA Compound, Aramid bead |
| Derailleurs | Shimano GRX RD-RX822 GS Shadow Plus rear |
| Shift levers | Shimano GRX ST-RX820 Dual Control STI, 12-speed, right. GRX ST-RX820-LA Dropper Post Operation, left |
| Chain | KMC X12 EPT Anti-Rust |
| Cassette | Shimano CS-M7100, 12-speed, 10-45T |
| Crankset | Shimano GRX FC-RX820, 40T, 170mm (48/51), 172.5mm (54/56), 175mm (58/61) |
| BB Set | Enduro 386EVO PressFit for 24mm spindle |
| Pedals | N/A |
| Brakeset | Shimano GRX BR-RX820 flat mount hydraulic disc brakes with resin pads and Fin, Shimano RT-MT800 160mm rotors with GRX ST-RX820 Dual Control STI levers |
| Handlebar | Ritchey Ergomax Comp, 6061 aluminum, 73 reach, 128 ergonomic drop with 12° flare, 31.8 x 420 (48-51) 440mm (54-56), 460mm (56-61) |
| Stem | Ritchey 4-AXIS 44 Stem 6°x60mm (48-51), 70mm (54-56), 80mm (58/61) |
| Tape | Velo EVA gel with gel inserts |
| Seat Post | Ritchey Comp Carbon Zero, 27.2 x 400mm with Jamis 7075-AL CNC aluminum 1-bolt seat post clamp |
| Saddle | Fizik Terra Argo X7 Gravel Saddle with relief hole and S-Alloy rails |
| Sizes | 48, 51, 54, 56, 58cm |
| Color | Copper Tone |
| Weight | 19.3 lbs |
