The Portal stays planted, rips, has the incredibly efficient 3VO suspension design and is overall a bike we would love to stay on...Simply put, this bike is up there with the best all-around trail bikes on the market today.
A rear wheel that stays planted while charging through rough terrain is crucial to providing an intimate connection with the trail. 3VO’s initial rearward axle path allows the bike to be supple on small bumps and square edge hits while its tightly tuned relationship with the system’s leverage ratio keeps the suspension highly reactive even while pedaling.

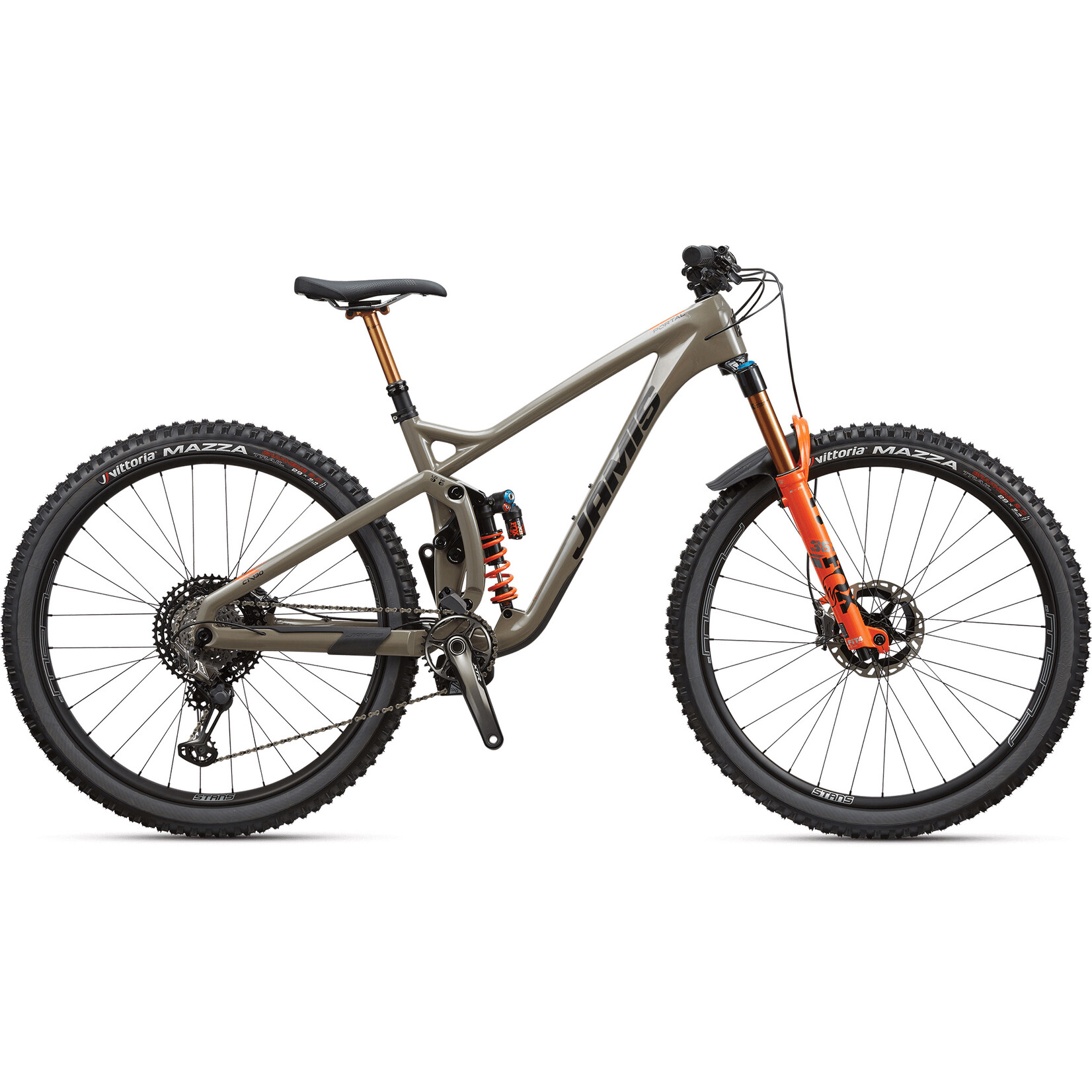

| PORTAL | C1 |
|---|---|
| Frame | Dyad Pro High Modulus Carbon Fiber, 130mm travel 3VO suspension, Enduro¨ Max sealed bearing pivots, 1.5 – 1 1/8Ó tapered head tube, 12x148mm thru-axle, Internal dropper post routing, Custom Jamis upper chainguide, MRP SXg lower chainguide,Fox DHX2 Factory Series coil shock w/2-position compression switch, SLS 450lb Spring, high/low speed compression, high/low speed rebound, 10mm hardware, replaceable derailleur hanger |
| Fork | Fox 36 Factory Series Float 29″ w/ 3-position adjust compression & lock-out,15x110mm axle, air spring compression, rebound adjust, tapered alloy steerer, 140mm travel, 51mm rake |
| Headset | FSA Orbit IS Integrated, 8mm cone spacer |
| Wheels | Stans Flow CB7 Carbon 29″ tubeless wheels, 15x110mm axle front and 12x148mm rear E-SYNC hubs, Sapim D-Light spokes |
| Tires | Vittoria Mazza 29 x 2.4″, TNT tubeless |
| Derailleurs | Shimano XTR, 12-speed |
| Shift levers | Shimano XTR, 1×12-speed |
| Chain | Shimano M9100, 12-speed |
| Cassette | Shimano M9100, 12-speed, 10-51T |
| Crankset | Shimano XTR M9120, 32T |
| BB Set | Shimano BSA |
| Pedals | N/A |
| Brakeset | Shimano XTR M9120 4-piston Ice-Tech hydraulic disc, RT-900 180mm rotors |
| Handlebar | Race Face Turbine R, 800mm x 20mm rise, 35mm diameter |
| Stem | Race Face Turbine R, 50mm extension, 35mm clamp diameter |
| Grips | Jamis Lock-On |
| Seat Post | Fox Transfer Factory Series Dropper, 1x remote |
| Saddle | WTB Volt |
| Sizes | S (15.5), M (17), L (19), XL (21) |
| Color | Sandstone |
| Weight | 30 lbs |
